300mm × 300mm × 450mm Size Small Screen LCD, High Accuracy Viscosity Measurement Tools ,Viscosity Measurement Device

Brand Name : Kejian Kinsgeo

Model Number : NDJ-5S

Certification : ISO,CE and etc

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 10 Sets per Month

Delivery Time : in stock,3-7 working days after order confirmed

Packaging Details : Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case

Repetitive error (Newtonian liquid) : ±1%

Measuring range(mPa﹒s) : 20mPa.S–200,000mPa.S

Random rotor : 21、27、28、29#

Rotating speed(r/min) : 0.5 / 1 / 2 / 5 / 10 / 20 / 50

Display mode : Small screen LCD, English show

Test error (Newtonian liquid) : ±2%

external size(mm) : 300 × 300 × 450

Contact Now

Small Screen LCD, High Accuracy Viscosity Measurement Tools ,Viscosity Measurement Device

Description:

SNB series of digital viscosimeter using 16-bit microcomputer processor as the core of the stepping motor high subdivision drive technology, procedure control, speed smooth, easy operation; LCD backlit display direct display viscosity, rotational speed, torque, rotor Numbers and percentage of measured liquid temperature information, there is error alarm functions. USES the advanced accuracy calibration technology, every step of the accuracy, linear all after external computer with different viscosity standard silicon oil measurement correction. Ensure that the instrument is of high precision, high accuracy and high repeatability.

Main features:

① The test sample viscosity value is displayed directly on the LCD screen without the need for manual calculation;

② 16-bit microcomputer processor as the core of the stepper motor drive with high subdivision, LCD backlight display;

③ programmed motor controlthe mains frequency change does not affect the measurement accuracy;

④ machine a machine design, easy to operate;

⑤ SNB-1A type designed with sample adapter, samples used in small doses. 1 ~ 4 # rotor require different sample volume of 200 ~ 400ml, only 20 ml of the sample using the sample adapter amount either.

⑥ optional temperature probe, real-time measurement of the temperature of the sample under test and temperature measurement accuracy of 0.1 ° C;

⑦ RS232 interface (or optional USB2.0 interface), output data, connect an external device;

⑧ standard data processing software can real-time recording of the sample viscosity with time, speed or rotor (shear rate), the difference in temperature which occurs changes, which provides a good understanding of the size of the non-Newtonian viscosity of the liquid and rheological characteristics analysis method.
Applied to grease, paint, coatings, pulp, textile, food, medicine, adhesive, cosmetics, etc., viscid fluid production industry and scientific research units. Instruments to measurement accuracy, quick, direct, simple advantage, access to various industries customers choose.

Specifications:

Model SNB-1A
Display mode Small screen LCD, English show
Rotating speed(r/min) 0.5 / 1 / 2 / 5 / 10 / 20 / 50
Random rotor 21,27,28,29#
Configuration 0# rotor no choose
Measuring range(mPa﹒s) 20mPa.S–200,000mPa.S
Test error (Newtonian liquid) ±2%

Repetitive error (Newtonian liquid)

±1%
automatic scanning function Do not have
temperature measuring interface Have
data output interface have
constant temperature components option
data processing software standard configuration
external size(mm) 300 × 300 × 450

RFQ:

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

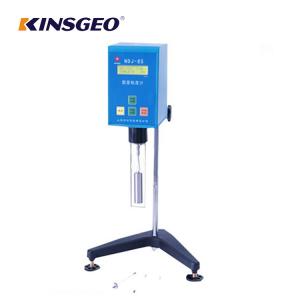

Pictures:

300mm × 300mm × 450mm Size Small Screen LCD, High Accuracy Viscosity Measurement Tools ,Viscosity Measurement Device

KeJian Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
